Simple Timer For Staging
Original price was: $105.35.$73.75Current price is: $73.75.
- Where quality meets convenience.
- Protect Your Information, Shop with Safe Payments
- 7 Days of Hassle-Free Returns
- Secure Payments, Secure Shopping

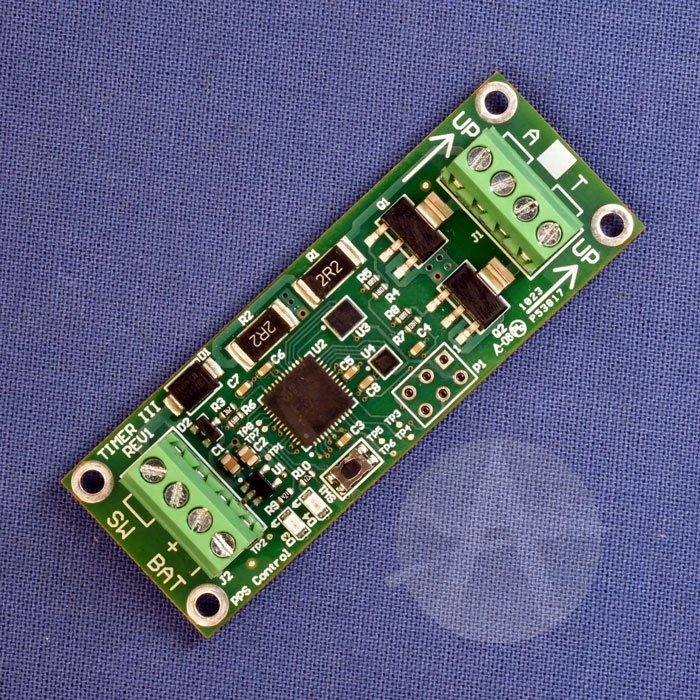

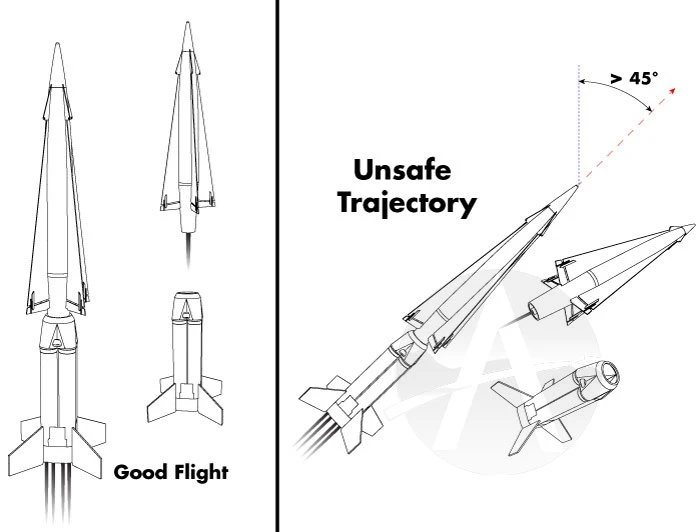

The Simple Timer controls ignition of upper stages by setting a time from liftoff when the air-started motor should ignite. Also includes an apogee deployment channel for extra safety. Its built-in logic prevents ignition of the upper stage if the rocket goes unstable or is tilted more than 45° from vertical at the time of ignition.
| Model | 09142 |
|---|---|
| Qty per pack | 1 |
| Manufactured by | Apogee |
| Electronics Class | Staging |
| Weight | 0.41 oz (11.62 g) |

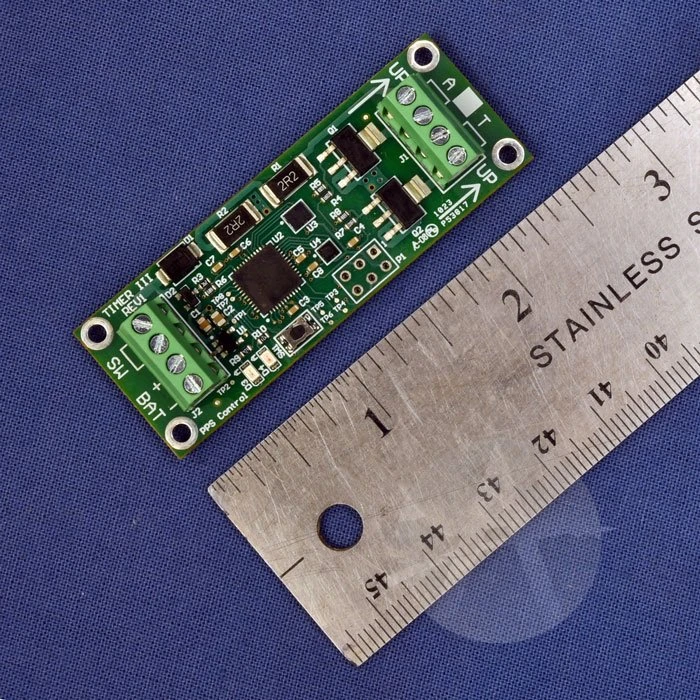

| Dimensions | 2.5"L x 0.9"W x 0.8"H (64mm L x 23mm W x 20mm H ) |
| Mounting Style | Four mounting holes with screws and stand-offs |
| Associated Accessories | Version 3 – Now with Apogee Deployment Event |
| Battery Charging Method | Not Included |
| Data Downloadable | No |
| Launch Trigger | 2G's for 0.5sec, or 6G's for 0.1sec, plus angle must be |
